BigPack Do88 Toyota Yaris GR

Description

Description
The best performance intercooler kit for the Toyota Yaris GR on the market!

This BigPack includes both the intercooler kit and the do88 performance hose kit.

This kit is for those with high power goals who want to take things to the next level! Simply upgrading to our performance intercooler provides a significant improvement, but combined with our pressure hose kit, the improvement is enormous! Our pressure hoses have a considerably improved flow compared to the original hoses, verified by several tests performed on the car and on our own SuperFlow SF-1020 flow bench.

The advantages of the BigPack do88:
– Larger base volume: 13,971 cm3 vs 7,320 cm3, i.e. 91% larger!
– Larger active cooling surface area, 2451 cm2 vs 913 cm2, i.e. 168% larger!
– Larger input/output connections: 63mm (2 1/2”) vs 45mm (1 3/4”), i.e. a 95% larger area!
– Air flow at a pressure drop of 0,175 bar/2,54 psi: 284 CFM vs 203 CFM, i.e. 40% higher!
– Maximum power gain of 26 hp with the do88 turbo intake! Measured on a car equipped with the TTE400 turbo, Syvecs ECU, etc.
– Lower post-intercooler air temperature under the same conditions: 25°C (50°C), i.e. 25°C lower!

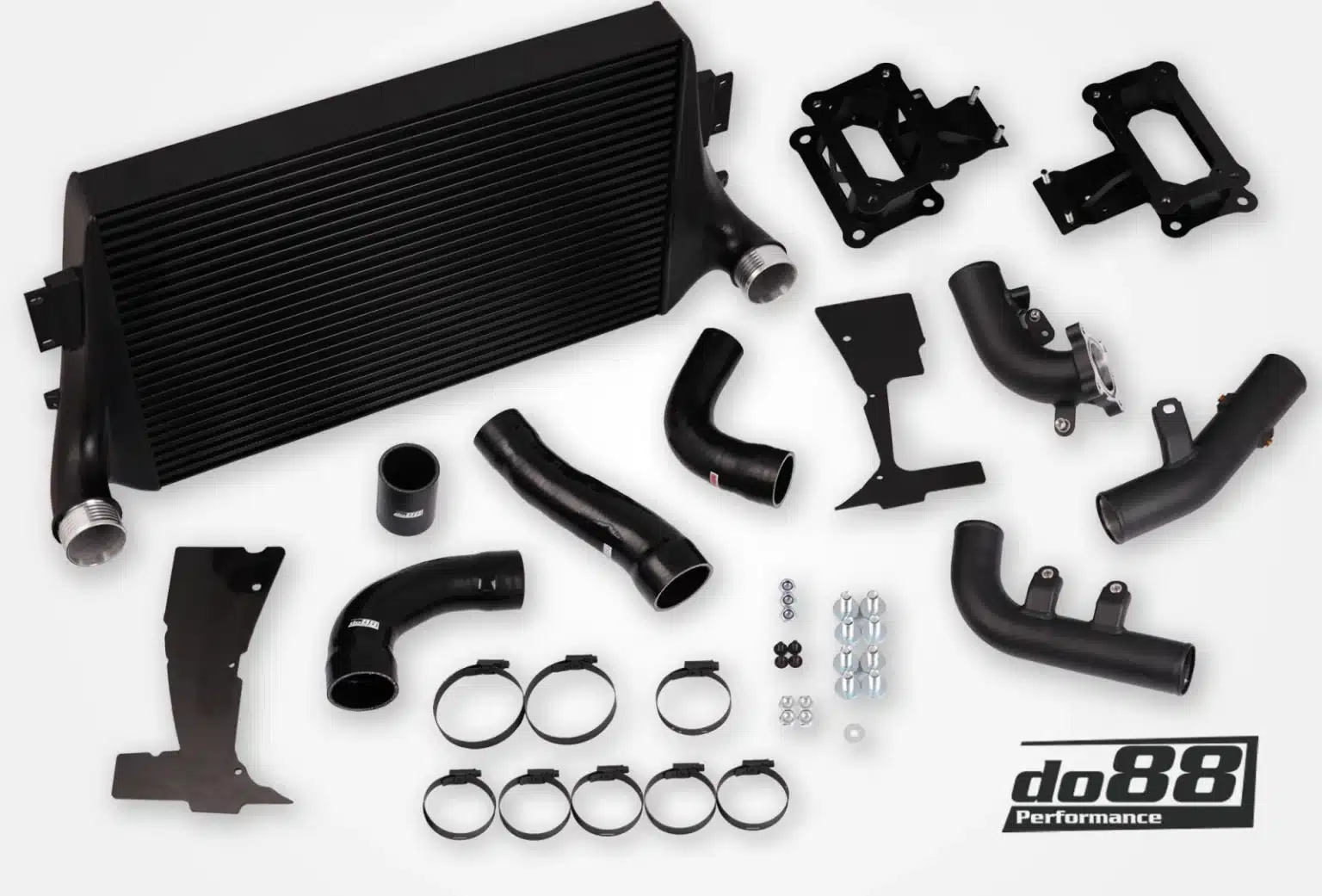

The BigPack includes a full aluminum performance intercooler and a kit of 2" and 2 1/8" hoses, as well as silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, resulting in a drastic improvement in airflow and cooling performance.

The do88 performance intercooler is made entirely of aluminum. With finely machined, flow-optimized reservoirs and an optimized core design, it achieves the best possible cooling efficiency combined with the lowest possible pressure drop!

The pressure pipes are made of seamless aluminum pipes bent into 2 and 2 1/8″ mandrels.

High-quality, custom-made silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can withstand very high temperatures and pressures!

Remember that the original intercooler was designed for the power output for which the car was originally built. Increasing the power output or even very intensive use of the car in its standard configuration can lead to insufficient performance from the original intercooler. Therefore, only after an engine software update will the do88 BigPack offer a performance increase compared to the original intercooler!

Suitable for
Toyota Yaris GR
Model years: 2020-

OE Ref / Replaces
17940 - 18010
17361 - 18020
17362 - 18010
17360 - 18010
17363 - 18010
17342 - 18010
17343 - 18020
17344 - 18010
17345 - 18010
