Do88 Charge Pipe Kit for BMW G Series (B58)

Description

Description
Optimize your engine with the do88 intercooler piping kit for B58 Generation 2 found in the BMW M340i and more!

The second-generation B58 engine is fantastic, but it has a known reliability issue: its intercooler piping. This piping is notoriously fragile and can break even on stock cars during track sessions. If you plan to tune your engine, it is highly recommended that you replace the intercooler piping beforehand.

Numerous intercooler hose kits for the B58 engine are available on the market, but in our opinion, most are poorly designed. Many competitors use a basic design: two hoses connected by a shortened, straight silicone hose. Clearly, they haven't grasped the importance of managing thermal movement within this system. Such a design is almost guaranteed to cause problems, with the hose detaching due to its lack of flexibility in the face of temperature changes. A common solution people consider is tightening the clamps further, but this will often break the hoses because it deforms the clamping surface.

But at do88, we took a different approach. For us, it was clear that the system required a flexible connection between the two hoses that could accommodate thermal expansion and contraction. Our solution is an aramid-reinforced silicone hose with three bulges. This hose design allows movement in all directions without kinking or stressing the connections. To further strengthen our design, the hoses have CNC-machined 6063 aluminum hose connection ends with a 3mm wall thickness. These hose connections won't deform, even with overtightened clamps.

Our intercooler hoses not only solve the durability problem but also improve performance. We designed our hoses with a larger diameter and smoother bends to enhance performance. The lower hose measures 60mm (2 3/8″) and the upper hose 76mm (3″), effectively reducing pressure loss and minimizing turbulence.

Our intercooler piping, which connects to the throttle body via its CNC-machined flange, features two 1/8 NPT ports suitable for methanol injection or outlets such as a boost pressure sensor. Additionally, we supply two 1/8 NPT plugs for those who choose not to use these ports.

Important Notice

The space available for the charge pipe between the throttle body and the slam panel (the sheet metal piece located above the radiators) is very limited on the G-chassis platform. In some cases, it may be necessary to grind down the edge of this slam panel by a few millimeters to provide more space for the do88 charge pipe.

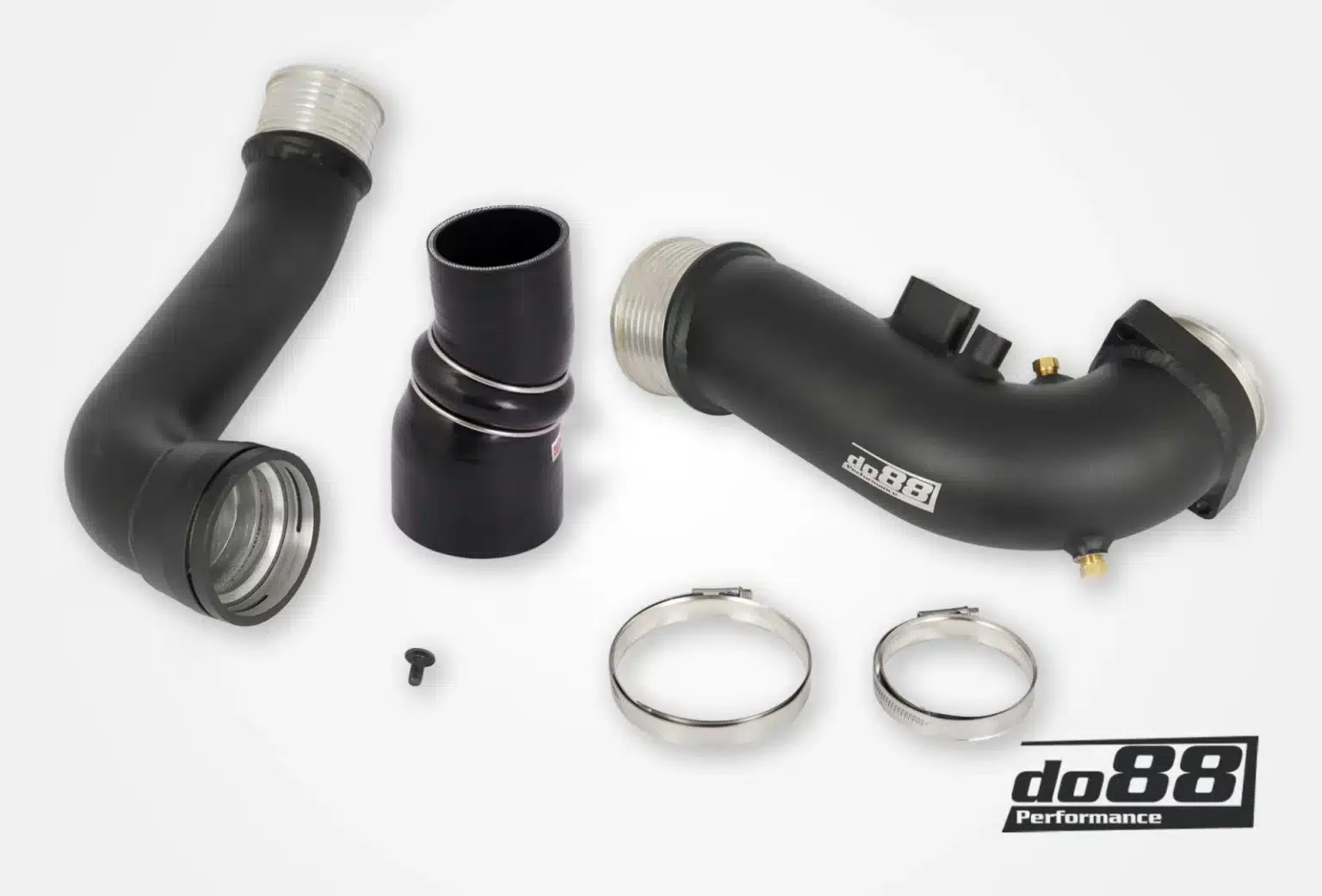

Features:

Flexible hose connection between the upper and lower intercooler pipes allowing movement that prevents the hose from detaching.
Specially designed 3-bump silicone hose, reinforced with high-temperature resistant aramid fabric and stainless steel outer rings.
High-quality Mikalor hose clamps are included. These clamps feature an inner ring that prevents damage to the hose and distributes clamp pressure evenly around the hose.
Better airflow and less back pressure for your engine!
27% more flow compared to OEM, with 558 CFM @ 150mbar (2,17 psi) compared to OEM 439 CFM.
CNC machined hose connections with an inner diameter matching the hose, providing a deformation-resistant hose clamping surface.
CNC machined MAP sensor pattern, turbo connections and throttle body.
Connections (2x) 1/8 NPT CNC machined, perfect for methanol injection or as outlets, for example for a boost pressure sensor.
Two 1/8 NPT plugs are included if you do not wish to use the ports.
60mm (2 3/8″) and 76mm (3″) mandrel-bent intercooler piping coated with an elegant black powder coating.
Does not interfere with the engine cover.
Includes all hardware and instructions for complete installation

Suitable for
BMW 2 Series M240i M240iX (G42)
Engine: B58 Gen 2
Model years: 2021 –

BMW 3′ M340i M340iX (G20 G21)
Engine: B58 Gen 2
Model years: 2018 –

BMW 4′ M440i M440iX (G22 G23 G26)
Engine: B58 Gen 2
Model years: 2021 –

BMW 5 Series 540i 540iX (G30 G31)
Engine: B58 Gen 2
Model years: 2018 –

BMW 6 Series 640i 640iX (G32)
Engine: B58 Gen 2
Model years: 2018 –

BMW 7 Series 740i 745e (G11 G12)
Engine: B58 Gen 2
Model years: 2018 –

BMW 8 Series 840i 840iX (G11 G12)
Engine: B58 Gen 2
Model years: 2018 –

BMW X3 M40iX (G01)
Engine: B58 Gen 2
Model years: 2018 –

BMW X4 M40iX (G02)
Engine: B58 Gen 2
Model years: 2018 –

BMW X5 40iX (G05)
Engine: B58 Gen 2
Model years: 2017 –

BMW X6 40iX (G06)
Engine: B58 Gen 2
Model years: 2018 –

BMW X7 40iX (G07)
Engine: B58 Gen 2
Model years: 2017 –

OE Ref / Replaces
13718651066
